Upper and Lower Well Completion Equipment

Upper Well Completion Equipment

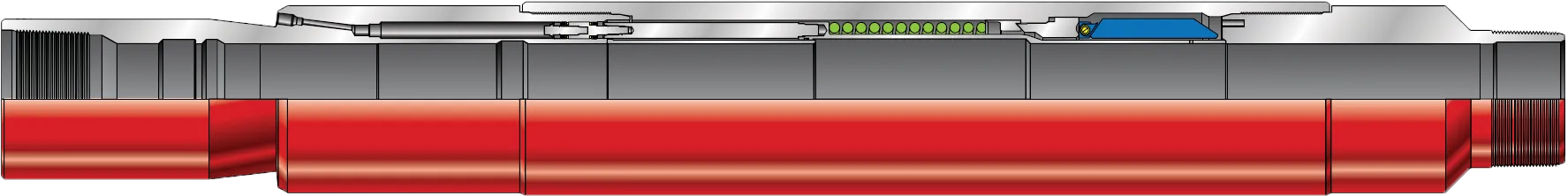

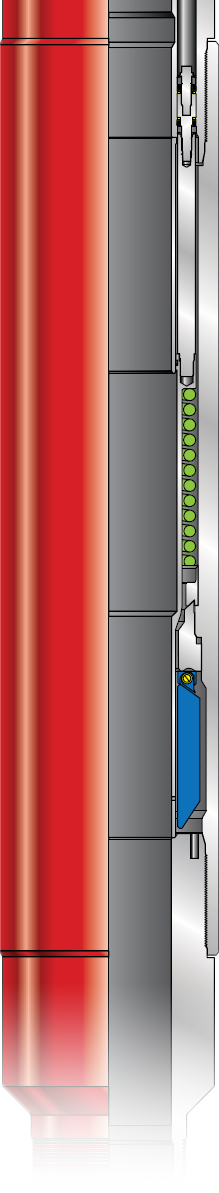

Tubing-Retrievable Safety Valves

Applications

General production completions
Hostile well environments incompatible with elastomers

Features

Non-elastomer dynamic piston seals
Simple compact design
100% MTM well containment in closed position
Positive debris barrier at both ends of flow tube
No construction seals used in the lockout and communication system
Unique flow tube construction prevents debris from settling on top of flow tube

Benefits

Non-elastomer dynamic piston seals
Most field-proven and reliable hydraulic actuator in the industry
Dynamic and static seals independently verified gas tight
Verified MTM flapper sealing
Critical components isolated from well debris during production
Minimized potential leak paths
Optimal reliability

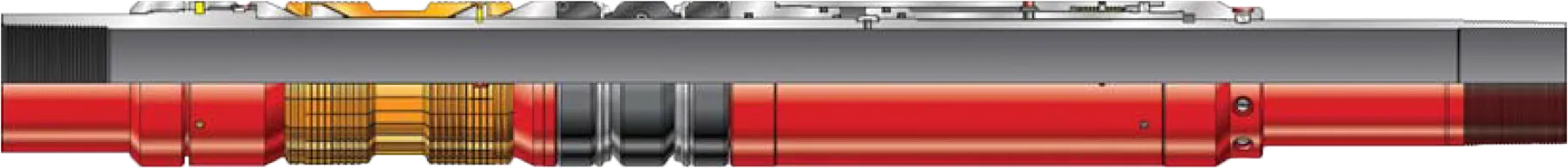

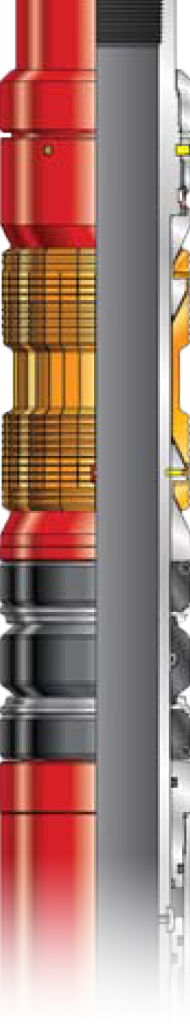

Retrievable Production Packers

Applications

• API 11D1-V3 validated
• Single-trip capability
• Barrel slip design
• Single-piece mandrel construction
• Triple-seal, multidurometer element
• Straight shear or cut to release

Features

API 11D1-V3 validated
Single-trip capability
Barrel slip design
Single-piece mandrel construction
Triple-seal, multidurometer element
Straight shear or cut to release

Benefits

Multiple packers can be set close together
Easily converted between straight shear to release or cut to release
Meets API 11D1 specifications
Various casing sizes available

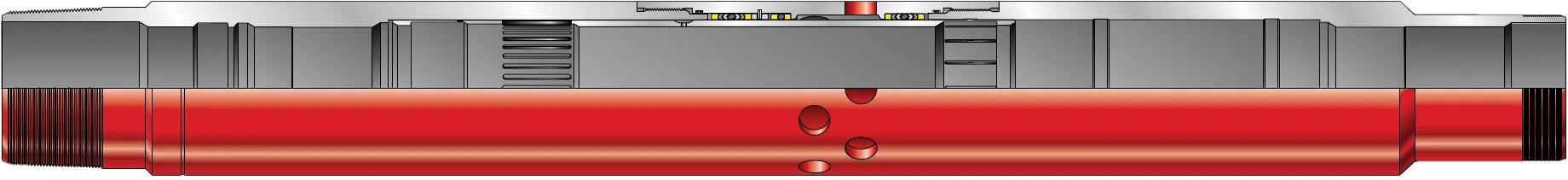

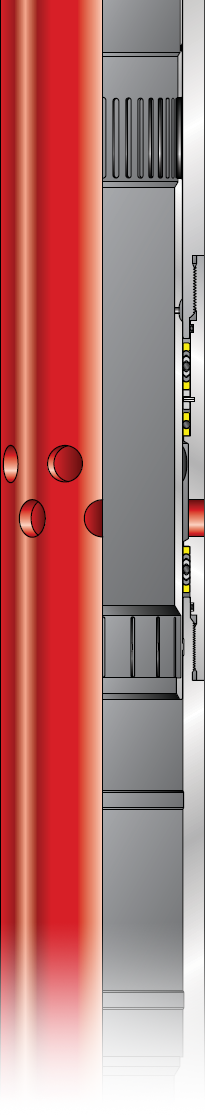

DuraSleeve Sliding Circulation and Production Sleeve

Applications

Single string selective completions
Providing a path for circulating heavier or lighter fluids
Secondary recovery

Features

Polished seal bores in both top and bottom subs
All seals are non-elastomer
Circulation/production flow area is equal to DuraSleeve device ID
Collet provides positive sleeve location in the closed, equalizing, and open position
Upward and downward opening versions available
Equalizing ports in the inner sleeve allow opening under high differential pressures
B profile provides automatic positioning tool release when sleeve is completely shifted

Benefits

Reliable operation during the life of the well
Can be opened repeatedly against high differential pressures
Can be shifted in high debris or sandy environments
Several sleeves can be shifted in a single slickline trip
Individual sleeves can be opened or closed selectively
Slickline-run accessory tools can be set within the DuraSleeve device

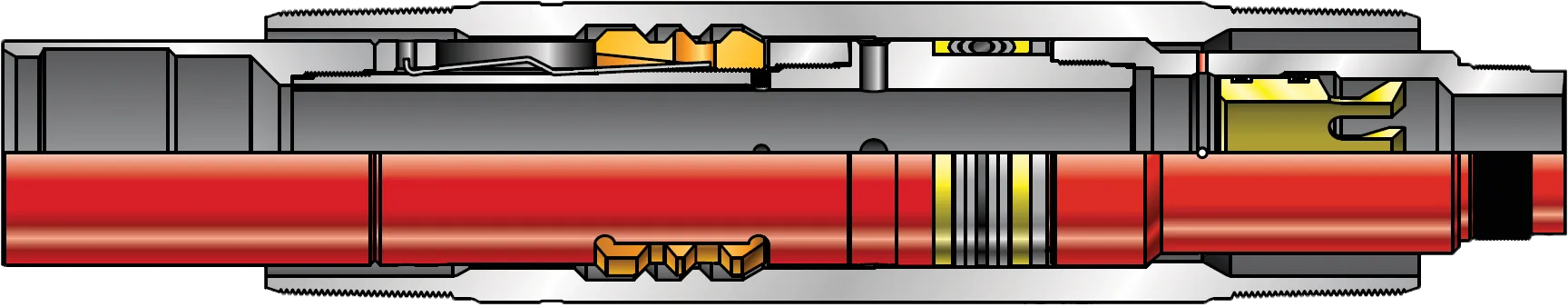

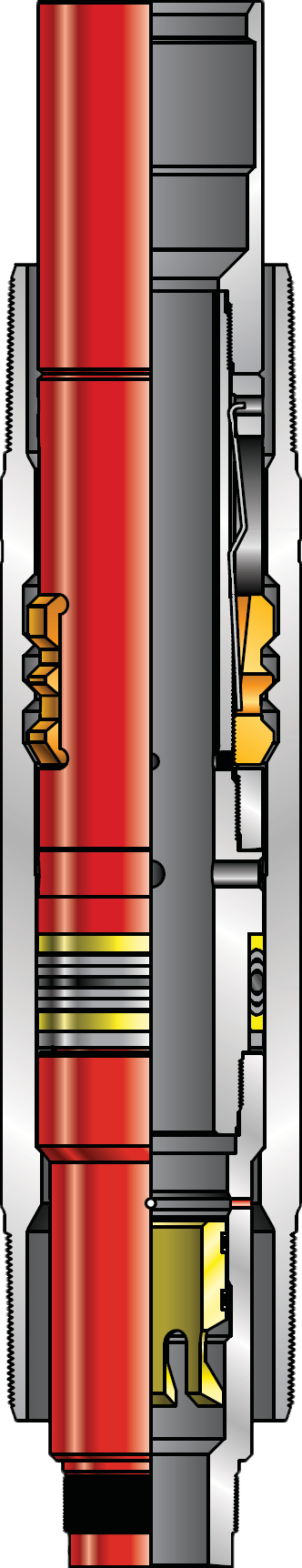

No-Go Landing Nipples and Lock Mandrels

Applications

Gauge hangers for bottomhole pressure/temperature surveys
Positive locator for straddle systems
Plugging under pressure
Almost unlimited locations for setting and locking subsurface flow controls

Features

Landing nipples
- Large bore for minimum restriction
- Universal nipple with one internal profile

Lock mandrels
- Retractable locking keys
- Locks designed to hold pressure from above or below
- Extra-large ID for higher flow volumes

Benefits

Landing nipples
- Versatility helps reduce completion and production maintenance costs
- Simple operation
- Multiple options when running, setting, or retrieving subsurface flow controls

Lock mandrels
- Faster slickline service because of retractable keys
- Operator control of locating, landing, and locking in the selected nipple
- Inside fishing neck provides large ID to maximize production device

Permanent Downhole Gauges

Applications

Life of well production monitoring
Life of field reservoir monitoring
SmartWell completion system optimization
Artificial lift optimization

Features

Incorporates the most advanced high-temperature electronics available
Accurate quartz pressure/temperature (P/T) sensor
Designed for harsh environments up to 30,000 psi
Dual-pressure testable metal-to-metal sealing arrangement on both the gauge and cable termination
Reduced OD gauge design
Multi-drop capability on single tubing-encased conductor
Flow measurements for specific applications
Hermetically sealed electron beam-welded design

Benefits

Obtains continuous P/T data without the need for well intervention
Enhances reservoir management
Helps increase system reliability using stable P/T measurements obtained from state-of-the-art testing device

Lower Well Completion Equipment

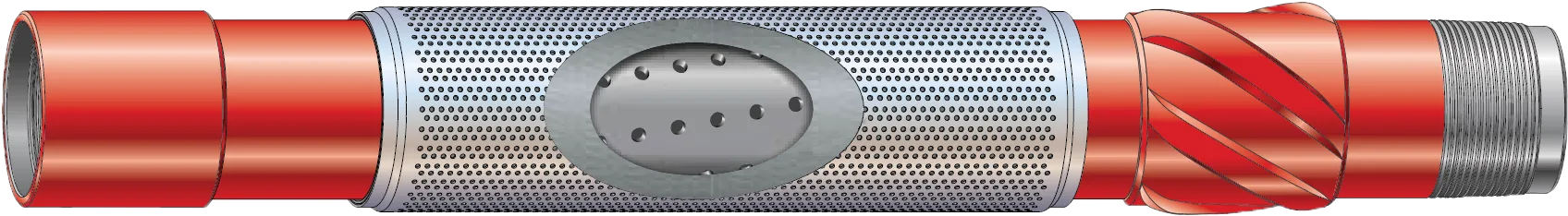

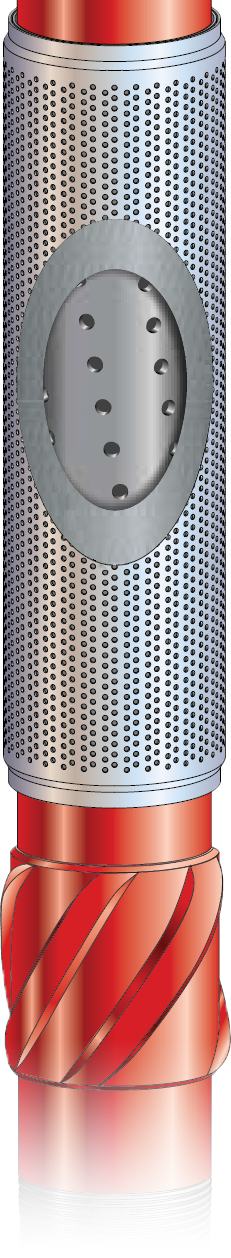

Advanced Mesh Screen

Applications

Fines-prone heavy oil reservoirs
Wide range of sand control applications

Features

Custom designed for each project
Multiple graduated filtration layers
No tortuous flow path
Precise pore size control

Benefits

Optimized filtration for each field
Higher solids retention
Improved plugging resistance
Improved inflow efficiency and backflushing capability
Reduced need for pumped sand control solution

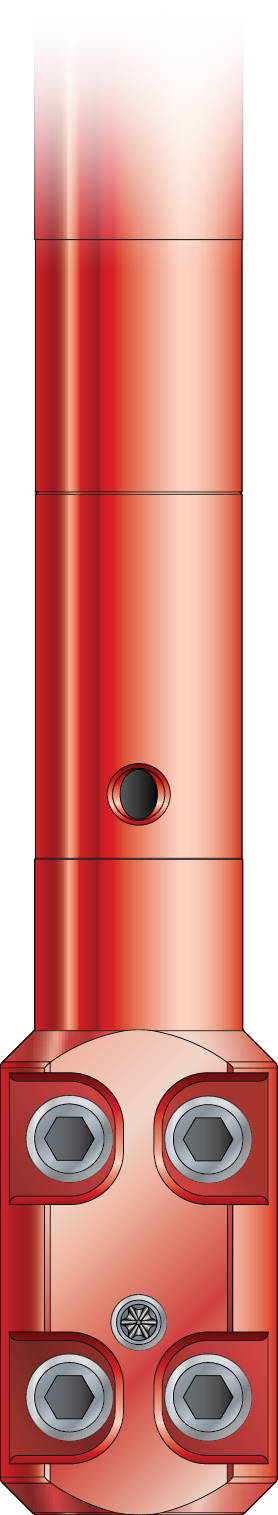

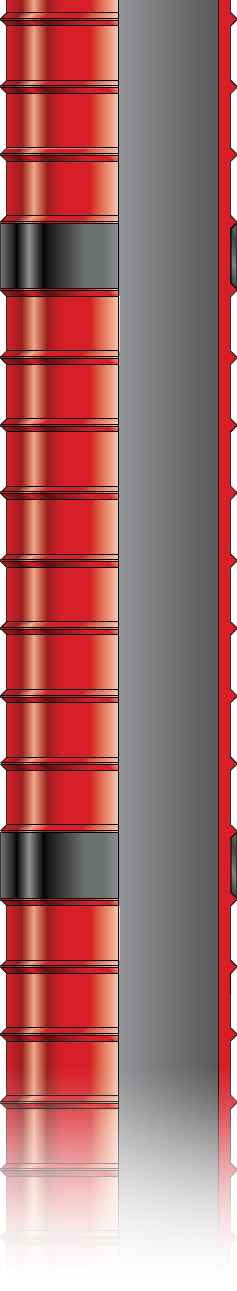

Expandable Liner Hanger System

Applications

Land
Offshore
Deep water
High pressure/high temperature (HP/HT)

Features

Simple, clean-form design
MTM seal with resilient elastomeric seal¹
Eliminates internal body connections
360° hydraulically energized compliant seal
Engineered extrusion limiter rings
Gas-tight, ISO 14310 V0 qualified²
Performs in elevated temperature and pressure environments — tested up to 575°F (302°C) and pressures up to 15,000 psi
Heavy liners and vertical or long lateral installations

Benefits

Maintains hang-weight capability at elevated temperatures
Sets in standard and heavy-weight parent casings
Applicable across multiple applications
Reduces ECDs and improves flow rates
Single-piece integral tieback receptacle/packer/hanger minimizes leak paths
Fewer connections, less parts, less problems
Energized sealing mechanism does not require drill pipe weight to set packer/hanger
Reliable, engineered solution

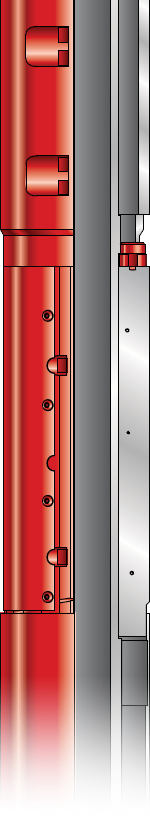

Flow Control Valves (Intelligent Completion)

Applications

Severe high pressure, deepwater environments operating conditions

Features

Proprietary, debris-tolerant, metal-to-metal seal
Customizable gas or liquid flow trim
Can be used in simple on/off intervention avoidance applications or in more versatile advanced reservoir management choking applications with a control module

Benefits

Can be run in conjunction with the eMotion® unit to suit remote open close applications
Remotely control flow into or out of the reservoir in challenging environments, such as deepwater and HP/HT
Eliminate the potential for wellbore debris to be trapped inside the tool and consequently prevent valve movement or affect sealing integrity
Obtain real-time confirmation of remotely actuated valve movements using optional position sensors
Unload at a maximum differential pressure of 5,000 psi without the threat of any valve damage — the highest unloading capacity in the industry
